Hardware required for network connection:
CIU 900 + CIM 280
Product number CIU 900: 99448387
For European frequency bands
CIM 280-EU 3G/4G cellular
Product number: 99895383
For North America frequency bands
CIM 280-US 3G/4G cellular
Product number: 99895386
Note: CIM 280 contain a eUICC plastic SIM card with int. roaming and requires an 3G/4G antenna (99518079).
Option: Rechargeable lithium-ion battery (99499908) for 3G/4G mobile interfaces that allows the CIM280 to send an alarm in case of power failure.
Note: CIM 290 contain a eUICC plastic SIM card with int. roaming and requires external antenna for LTE-M.
Antenna with magnetic foot and 2m cable (99838775), antenna with amounting bracket and 5m cable (93256028) or the 3G/4G antenna for cabinet mounting (99518079).
The release in each country depends on telecommunication providers LTE-M technology rollout, the radio approvals and SIM card roaming agreements for LTE-M. A complete list of supported countries can be found in this linked document.
CIM 290 release country overview
Note: To use Grundfos Connect a 1 year subscription (92711156) is needed.

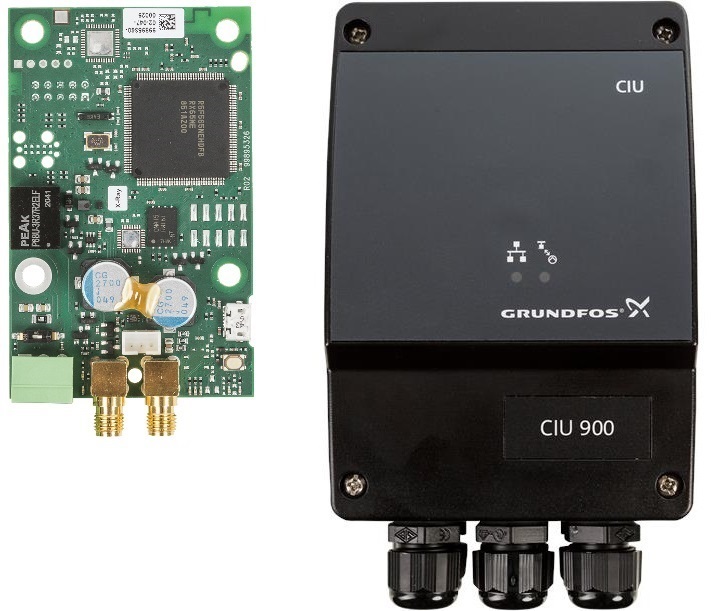

CIM/CIU 280 communication interface for easy integration into Grundfos Connect solution.

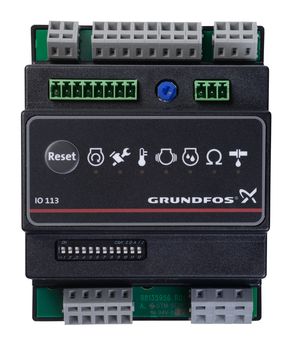

IO 113 monitoring, protection and communication module
The IO 113 is a protection module designed specifically for Grundfos SE/SL 9-30KW and The S wastewater ranges. The IO 113 has various dedicated analogue, PT100/1000 and digital inputs to monitor the pump and has a galvanically isolated output, that can be integrated into the pump control system to stop the pump in the event of failure.
The IO 113 offers the following monitoring functions*:
• motor temperature
• moisture in motor
• Water in oil
• insulation resistance.
• Pump vibration
• Bearing temperature
* Please ensure the pump selection incorporates the required sensors for the monitoring function required.

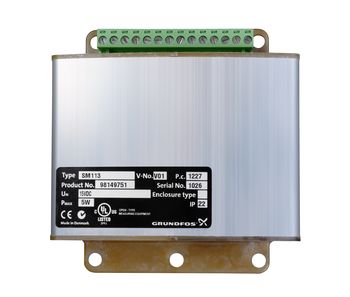

SM 113 sensor module
The SM 113 is an expansion unit that supports the IO113 . The SM 113 is only used in combination with the IO 113. The two devices communicate with each other via a powerline connection with the Grundfos GENIbus protocol.
Supporting the IO113 the SM 113 increases the ability of this extended system to monitor data from the following sensors:
• 3 flow sensors, 4-20 mA
• 3 PT100 temperature sensors
• 3 PT1000 temperature sensors
• 1 PTC temperature sensor
• 1 digital input.
Learn more about the CIU in the Grundfos Product Center
Learn more about the EU CIM in the Grundfos Product Center
Learn more about the US CIM in the Grundfos Product Center
Learn more about the Grundfos Connect in the Grundfos Product Center
Learn more about the IO 113 in the Grundfos Product Center
Learn more about the SM 113 in the Grundfos Product Center
