Hardware required for network connection:

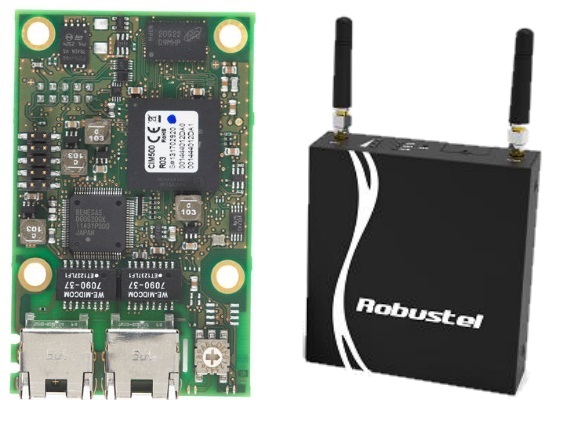

CIM 500
Product number: 98301408
Robustel R3000-L4L 4G router (EU only)
Product number: 99043057
Antenna
Product number: 99043061
12 V power supply DR 15-12
Product number: 99043052

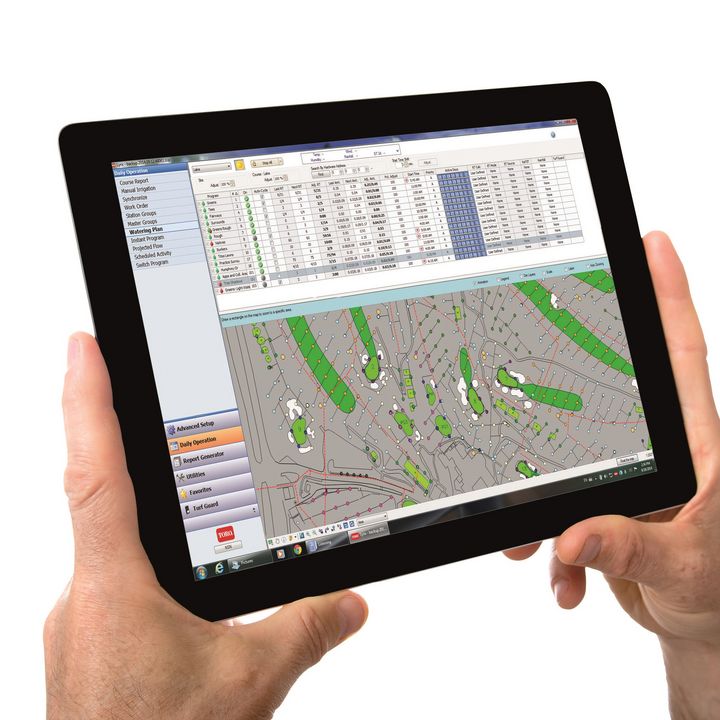

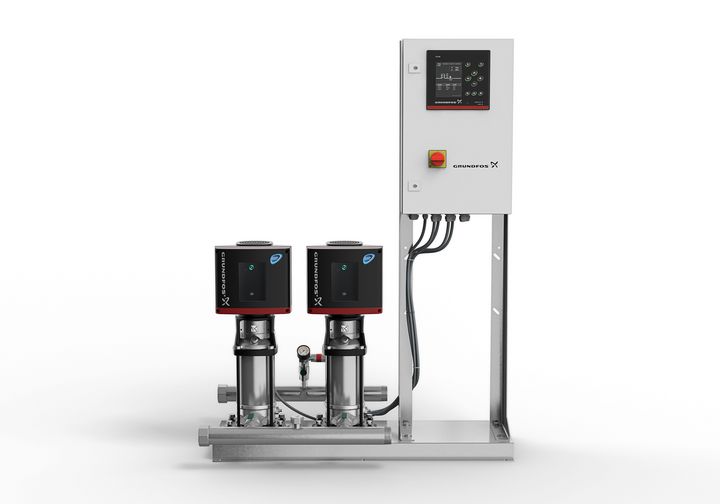

The Toro-Grundfos Integration Service connects the Toro Lynx system and the Grundfos Hydro MPC boosters.
Only the combination of the two systems creates the best solution for your green. For example, the irrigation control reacts to manual water withdrawals and closes valves when necessary to guarantee a constant sprinkler throw.
The CIM500 interface offers easy integration into both new and existing systems, as the Modbus TCP protocol is a standard protocol supported by numerous control and automation systems.
With a rotary switch, you can easily change the protocol to PROFINET IO, Bacnet Ip and Ethernet IP.
An integrated webserver allows easy Ethernet parameter changes to configure the CIM500 to the wider system.
Learn more about the module in the Grundfos Product Center
The Integration Service polls data from the MPC pumping station using Modbus protocol, and makes it available for the Toro Lynx system to read.
Toro-Grundfos Integration Service Installer
