Hardware required for network connection:

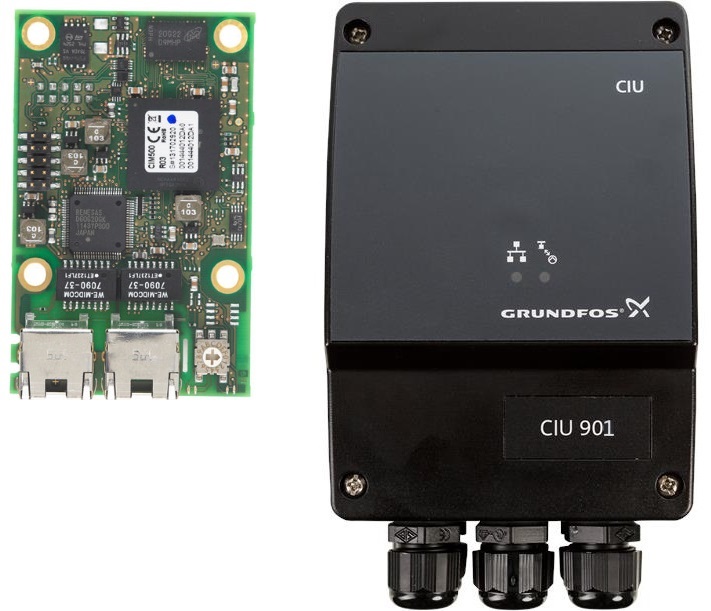

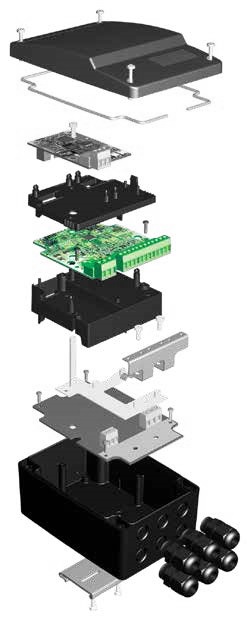

CIU 901 + CIM 500
Product number CIU 901: 99448389
Product number CIM 500: 98301408
The CIU 501 communication interface enables wired data transmission between SCADA systems and I/Os + Grundfos products. Data is transmitted using the Modbus TCP fieldbus protocol.
The interface offers easy system integration in both new and existing systems, as the Modbus TCP protocol is supported by many control and automation systems.
An integrated web server allows for easy setting of Ethernet parameters.
The CIU 901 is a standard interface unit with internal power supply and I/O card for integration of the CIM, for wall or top-hat rail mounting. These have an integrated 24 - 240 V AC/DC power supply. Grundfos products can connect to the CIM module via the GENIbus.
The integrated I/O universal card enables monitoring of pumps, sensors, meters and switches via
- 2 configurable digital inputs (open-circuit voltage 5 V DC) / analogue inputs ( 0-10 V/0-20 mA/4-20 mA )
- 2 digital inputs (open-circuit voltage 5 V DC)
- 1 Pt100/Pt1000 input
- 1 analogue output (0-10 V, maximum current at output: 1 mA)
- 1 relay ouput (240 V AC, 2 A)
The signals at the digital inputs are evaluated internally. Operating hours and start counters are available for monitoring operation.
Learn more about the CIU in the Grundfos Product Center
Learn more about the CIM in the Grundfos Product Center
Basic information on Grundfos Gateways for Modbus TCP networks
